`Secure Acceptance` `Checkout API` Overview

Barclays Secure Acceptance Checkout API provides a seamless customer checkout experience that keeps your branding consistent. You can create a Secure Acceptance Checkout API profile and configure the required settings to set up your customer checkout experience.

Secure Acceptance Checkout API can significantly simplify your Payment Card Industry Security Standard (PCI DSS) compliance by sending sensitive payment card data directly from your customer’s browser to Barclays servers. Your web application infrastructure does not come into contact with the sensitive payment data and the transition is silent.

Secure Acceptance is designed to process transaction requests directly from the customer browser so that sensitive payment data does not pass through your servers. Sending server-side payments using Secure Acceptance incurs unnecessary overhead and could result in the suspension of your and subsequent failure of transactions.

To create your customer's Secure Acceptance experience, you take these steps:

Create and configure Secure Acceptance Checkout API profiles.

Update the code on your web site to POST payment data directly to Barclays from your secure payment form. See Sample Transaction Process Using JSP. Barclays processes the transaction on your behalf by sending an approval request to your payment processor in real time. See Secure Acceptance Checkout API Transaction Flow.

Use the response information to generate an appropriate transaction response page to display to the customer. You can view and manage all orders in the Business Center. You can configure the payment options, response pages, and customer notifications. See Creating a Secure Acceptance Profile.

Required Browsers

You must use one of these browsers in order to ensure that the Secure Acceptance checkout flow is fast and secure.

Internet Explorer is no longer supported.

Desktop browsers:

Chrome 80, released February 4, 2020 or later

Edge 109, released January 12, 2023 or later

Firefox 115, released June 29, 2023 or later

Opera 106, released December 19, 2023 or later

Safari 13, released September 20, 2019 or later

Mobile browsers:

Android Browser 123, released March 12, 2024 or later

Chrome Mobile 80, released February 4, 2020 or later

iOS Safari 13, released September 20, 2019 or later

`Secure Acceptance` Profile

A Secure Acceptance profile consists of settings that you configure to create a customer checkout experience. You can create and edit multiple profiles, each offering a custom checkout experience. For example, you might want to offer different payment options for different geographic locations.

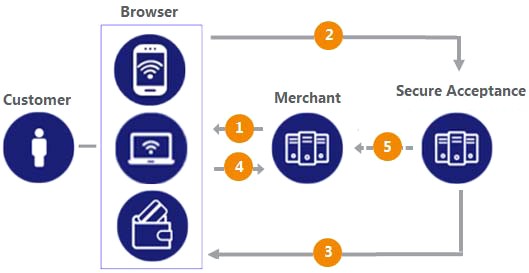

`Secure Acceptance` `Checkout API` Transaction Flow

Display the checkout page on your customer's browser with a form to collect their payment information and include a signature to validate their order information (signed data fields).

Your system should sign all request fields with the exception of fields that contain data the customer is entering. To prevent malicious actors from impersonating Barclays, do not allow unauthorized access to the signing function.

The customer enters and submits their payment details (the unsigned data fields). The transaction request message, the signature, and the signed and unsigned data fields are sent directly from your customer's browser to the Barclays servers. The unsigned data fields do not pass through your network.

Barclays reviews and validates the transaction request data to confirm it has not been amended or tampered with and that it contains valid authentication credentials. Barclays processes the transaction and creates and signs the response message. The response message is sent to the customer's browser as an automated HTTPS form POST.

If the response signature in the response field does not match the signature calculated based on the response data, treat the POST as malicious and disregard it.

Secure Acceptance signs every response field. Ignore any response fields in the POST that are not in the

signed_fields

field.

The response HTTPS POST data contains the transaction result in addition to the masked payment data that was collected outside of your domain. Validate the response signature to confirm that the response data has not been amended or tampered with.

If the transaction type is

sale

, it is immediately submitted for settlement. If the transaction type is

authorization

, use the Simple Order API to submit a capture request when goods are shipped.

Barclays recommends that you implement the merchant POST URL notification as a backup means of determining the transaction result. This method does not rely on your customer's browser. You receive the transaction result even if your customer lost connection after confirming the payment. See Merchant Notifications.

Payment Tokens

Contact Barclays Customer Support to activate your merchant account for

the

Token Management Service (TMS). You cannot use payment tokens until your account is activated and you have enabled payment tokens for Secure Acceptance. See Creating a Secure Acceptance Profile.

Payment tokens are unique identifiers that replace sensitive payment information and that cannot be mathematically reversed. Barclays securely stores all the card information, replacing it with the payment token. The token is also known as a subscription ID, which you store on your server.

The payment token replaces the card number, and optionally the associated billing, shipping, and card information. No sensitive card information is stored on your servers, thereby reducing your PCI DSS obligations.

Tokens That Represent a Card or Bank Account Only

Instrument identifier tokens

created using the Token Management Service (TMS) and third-party tokens

represent a payment card number or bank account number. The same card number or bank account number sent in multiple token creation calls results in the same payment token being returned.

TMS instrument identifier and third-party tokens cannot be updated. If your merchant account is configured for one of these token types, you receive an error if you attempt to update a token.

When using Secure Acceptance with tokens that represent only the card number or bank account, you must include associated data, such as expiration dates and billing address data, in your transaction request.

Level II Data

Secure Acceptance supports Level II data. Level II cards, also known as Type II cards, provide customers with additional information on their payment card statements. Business and corporate cards along with purchase and procurement cards are considered Level II cards.
